Kamera Pemeriksaan Lubang Lubang ialah-sistem pembalakan berketepatan tinggi yang dibangunkan dengan teliti oleh Rancheng Machinery untuk mengimbas dan imej lubang gerudi menggunakan probe kamera termaju. Kualiti pengimejan bergantung secara langsung pada prestasi probe, membolehkan pengesanan tepat kerosakan telaga air dan anomali struktur. Dilengkapi dengan-pencahayaan LED kecerahan tinggi dan kanta sudut lebar-, sistem ini menyediakan pemandangan panoramik 360 darjah, dengan jelas mendedahkan keretakan batu, ubah bentuk selongsong dan ciri geologi yang lain.
Sepanjang tiga generasi yang lalu, Rancheng Machinery telah terus mengoptimumkan Kamera Pemeriksaan Lubang Bor ini untuk mengatasi cabaran paling sukar dalam bidang ini, termasuk-suhu tinggi dan{1}}keadaan tekanan tinggi, pemampatan video dan penghantaran isyarat jarak-jauh. Dengan sistem kami, anda boleh mencapai-pemindahan video berkelajuan tinggi 2 Mbps sepanjang 2,000 meter kabel sambil mengekalkan pengimejan HD dan ketepatan pengesanan sehingga 0.01 mm. Dengan mengimbas lubang gerudi menggunakan kamera kami dan memantau imej langsung pada skrin permukaan anda, anda boleh mengesan kerosakan, sekatan atau penyelewengan geologi dengan cepat, membolehkan anda mengambil tindakan tepat pada masanya dan mengelakkan masa henti yang mahal.
Parameter Teknikal
|
*Kotak Kawalan bahan ABS * Antara Muka Kedalaman: Sambungkan penderia kedalaman * Antara Muka Probe: Sambungkan probe, hantarkan video dan kuasa * Antara Muka Data: Boleh ditulis ke lokasi telaga, nombor telaga, boleh menjadi-dalaman penentukuran sendiri * Sistem Video: Sistem Video Kad SD 16G adalah pilihan * Sifar Kedalaman: Sila kembalikan kedalaman kepada sifar sebelum log, supaya pengiraan adalah tepat. * Monitor: Monitor LED Kecerahan Tinggi 12", 210*310mm, Visual Luaran, Resolusi skrin 1027*768 * Antara Muka Pengembangan: Antara Muka Pengembangan Tangkapan Video |
|
* Win Elektrik: kawal kelajuan dan lif probe dengan butang kawalan kotak kawalan utama * Takal lubang bawah: Takal lubang bawah mempunyai fungsi mengira kedalaman, tetapi memerlukan talian data untuk menyambungkan kotak kawalan utama untuk digunakan * Motor: Motor DC Magnet Kekal * Winch: Iron Ram Stamping Wire Disc Motor * Split Docking Probe: Easy to exchange the probes of different size and specification. |
|
* Bearing: 260KG * Outside Diameter: 8 mm * Temperature Tolerance: 65º |
|
* Camera Size: Φ65mm * Camera Material: Zinc-coated, 304 Stainless Steel optional * Camera Window: Explosion-proof Optical Acrylic Glass Or Explosion-proof Glass Window * Camera Pixels: CCD Camera, 1200 TVL High-definition Low-light * Lens Angle: Side 360℃ * Camera Light: Φ65mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights * Brightness Adjustment: Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming. * Probe Pressure: 1500m, Pressure 15Mpa |
|
|
|
* Hand-in-one vertical detachable winch: 220V / battery power supply (0-600 available battery function) * Depth counting pulley: the lower pulley has a depth counting function, which requires the data cable to be connected to the main control box. * Pulley support rod: Retractable pulley support rod, detachable. * Depth counting function: the depth is accurate to 0.005 meters, if there is an error, the depth can be calibrated * Motor: permanent magnet DC motor, self-locking |
|
* 12 inch LED monitor: * Aspect ratio: 4:3 * Contrast: 450:1 * Brightness: 800cd/m2 * Resolution: 1027 × 768P * Power DC 12V,220V ,380V |
360℃ Rotating Camera Probe: Our camera rotates 360℃ horizontally and 180℃ vertically, giving you complete coverage of the borehole walls and bottom.
High-Intensity LED Illumination: Equipped with high-lumen cold-light LEDs, featuring five adjustable brightness levels and external lighting options for low-light conditions.
HD Wide-Angle Imaging: The low-light, high-definition camera supports electric and continuous directional control, with AutoPan automatic scanning and dynamic pitch adjustment.
Perfect for water wells, drilling holes, oil wells, and pile foundations, capturing lithology, fractures, bedding, faults, and karst formations with high precision.
Built to withstand high pressure and wet conditions, ensuring long-lasting, maintenance-free operation.
- Accurate Damage Detection: With our Borehole Inspection Camera, you can identify broken sections, blockages, or structural anomalies quickly and precisely.
- Operational Efficiency: Rapid and precise scanning saves time and reduces labor costs during inspections.
- Comprehensive Geological Assessment: Supplement your core sampling with clear observation of rock layers, thin interlayers, and faults.
- Reliability and Longevity: Pressure-resistant and waterproof construction minimizes downtime and replacement costs.
For organizations like urban and rural water supply companies and water treatment plants, which manage large numbers of public water wells, the Borehole Inspection Camera provides a critical tool for maintaining water quality and operational efficiency. By inspecting the borehole walls, operators can detect cracks, sand blockages, and damage or clogging in the filter pipes. This prevents sand and sediment from entering the water, ensuring stable water output and safe drinking water for communities.
The system also helps identify foreign objects, biological growth, or other anomalies inside the wells, enabling timely corrective actions before problems escalate. For drilling contractors, oil and gas operators, or foundation engineers, the camera provides precise borehole imaging, allowing them to assess geological conditions, locate faults, and optimize drilling or maintenance operations.
By using our Borehole Inspection Camera, customers can save time and reduce operational costs, make informed decisions based on high-definition images, and improve safety by identifying hidden structural weaknesses. Verified performance through real-world deployments and customer inspection images ensures reliability and gives operators confidence that wells and drilling projects are monitored accurately and efficiently.

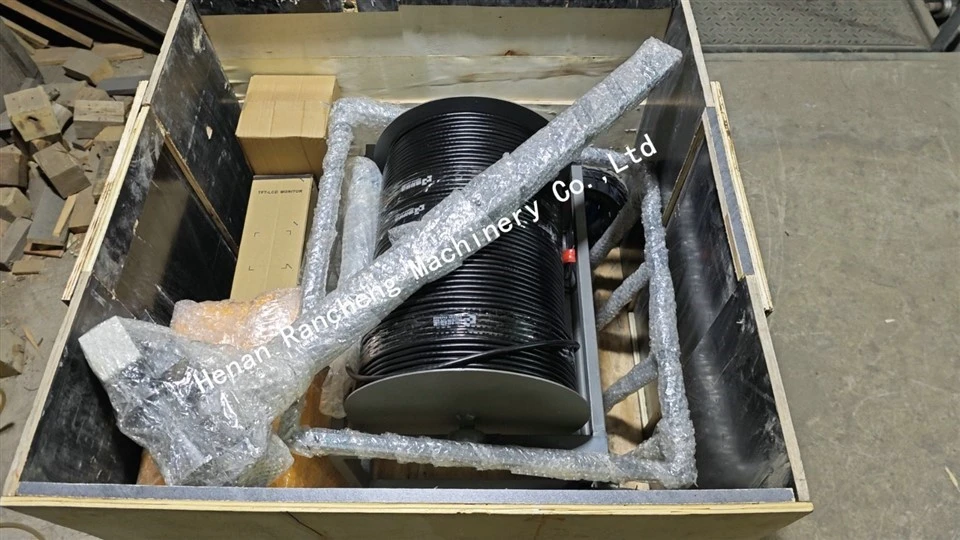

To give you a clearer sense of the Borehole Inspection Camera's quality and reliability, we share shipment photos and on-site images from customer projects. The camera can reach depths of 2,000 meters and withstand water pressure up to 2,500 meters, and the cable length can be customized to match the depth you need to measure.
